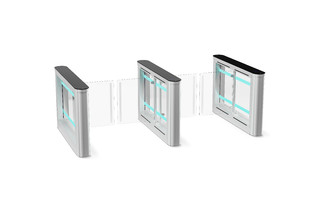

SW 100 Wide * Wide speed gate with swivelling glass leaves for anti-tailgating
- Automatic opening and closing of the swing leaves for convenient access
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Safety sensors ensure that only one person is granted access
- Sensor system detects persons with luggage and allows free exit
- Control via push button or via an access control system
- Use in open and closed modes of operation
- Stainless steel housing, stainless steel or solid glass plate top
- Rechargeable battery available for power failure / In the event of a power failure, the gate can be manually opened (fail-safe)
- Passage capacity 30 persons per minute
- BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
SW 100 wide speed gates have an ultra-modern futuristic design and are ideal for stylish lobby interiors in hotels, banks and offices. The swinging waist-high turnstile SW 100, with increased flow capacity, can operate in two modes: normally closed and normally open. Both directions of passage are free when the turnstile is de-energised. Thanks to a large number of sensors, the speed gate can detect when two people try to pass using one card, pass in the wrong direction or pass without authorisation and sound an alarm.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- Passage width 1200 mm
- For internal application
Technical data
| SW 100 Wide | |
| Passage width single | 1200 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 |
| Opening speed | 0.9 s |
| Closing speed | 0.9 s |
| Passage capacity | 30 Pers./min. |
| Anti-tailgating | Yes |
| Drop-arm function | No |
| Standard harmonized | EN 17352:2022 |
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
