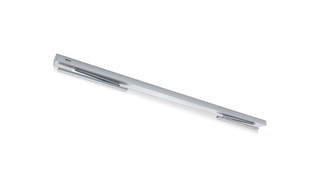

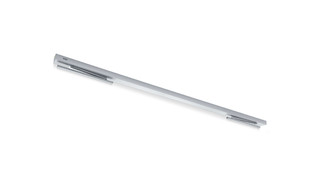

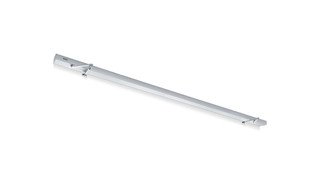

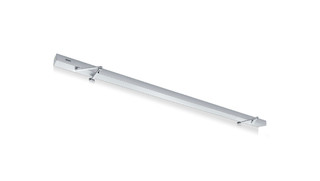

Powerturn, double leaf * Electromechanical swing door drive system for double leaf doors with closing sequence control
- Smart swing function for easy manual door opening
- Closing force of EN4-7 with variable adjustment
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
- Electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
- Servo function for motorized support when manually opening the door
- Optional radio reception board for wireless activation by radio transmitter
Application Areas
- Right and left double leaf single-action doors
- Single-action doors up to 3200 mm hinge clearance, 1600 mm leaf width and 600 kg weight
- Minimum hinge clearance 1600 mm
- Interior and exterior doors with high access frequency
- Transom installation hinge and opposite hinge side
Technical data
| Powerturn, double leaf | |
| Height | 70 mm |
| Width | 720 mm |
| Depth | 130 mm |
| Leaf weight (max.) 1-leaf | 600 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf, link arm | 1600 mm - 3200 mm |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf, roller guide rail | 1600 mm - 2800 mm |
| Leaf width (min.-max.) | 800 mm - 1600 mm |
| Reveal depth (max.) | 560 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 136 ° |
| Spring pre-load | EN4 - EN7 |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation hinge side with roller guide rail | Yes |
| Mechanical latching action | Yes |
| Electrical latching action | Yes |
| Electrical closing sequence control | Yes |
| Disconnection from mains | Main switch in the drive |
| Activation delay (max.) | 10 s |
| Operating voltage | 230 V |
| Power rating | 200 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP30 |
| Mode of operation | Automatic, Night, Permanently open, Shop closing, Off |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Low-energy function | Yes |
| function smart swing | Yes |
| Servo function | Yes |
| Key function | Yes |
| Vestibule function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | GEZEconnects (PC + Bluetooth), Service terminal ST 220, Programme switch DPS |
| Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220 |
| Standard conformity | DIN 18650, EN 16005 |

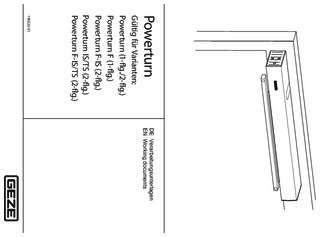

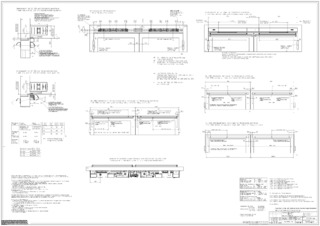

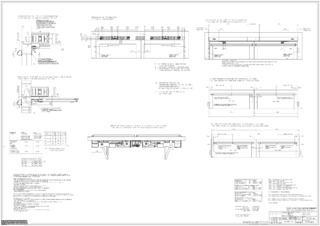

Downloads
