SL range - Speed gates with folding high gates

SL 550 & SL 900 * Speed gate with folding/sliding leaves for anti-tailgating

SL 550
  • Automatic opening and closing of the folding/sliding leaves for convenient access
  • Bi-directional usage possible, i.e. access and exit can take place in the same lane
  • Safety sensors ensure that only one person is granted access
  • Prevents objects from being passed through and the speed gate from being jumped over
  • Control via push button or via an access control system
  • Stainless steel housing, solid glass plate top
Show more
  • Rechargeable battery available for power failure / In the event of a power failure, the gate can be manually opened (fail-safe)
  • Passage capacity 30 persons per minute
  • BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
Contact us

SL 550 & SL 900

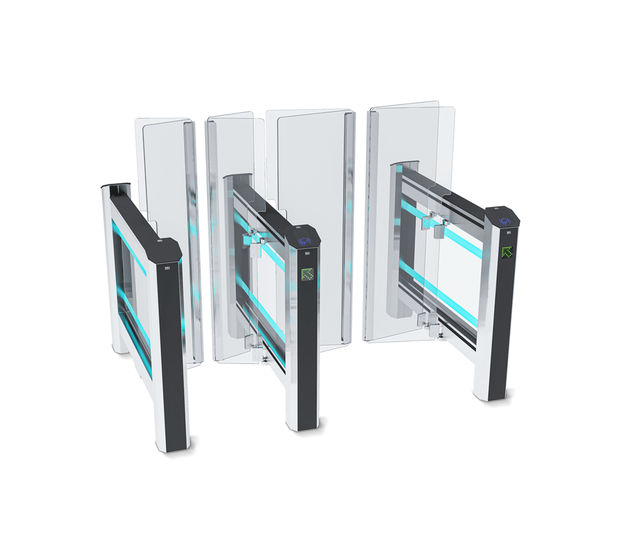

The SL 550 and SL 900 speed gates with folding sliding wings are stylish, original solutions that guarantee effective protection of the building. Suitable for any location: office centres, banks, hotels… The folding system of the SL 550 and SL 900 has a more robust, reliable design compared to existing speed gates on the market. The height of the flaps excludes the possibility of unauthorised passage, and also prevents the transfer of any objects.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Can be used for increased security requirements
  • Passage width 550 or 900 mm
  • For internal application

Technical data

SL 550 & SL 900
Passage width single 550 mm
Passage width Accessible 900 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41
Opening speed 0.7 s
Passage capacity 30 Pers./min.
Anti-tailgating Yes
Drop-arm function No
Standard harmonized EN 17352:2022

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
