TT range - Turnstiles with tripod arms

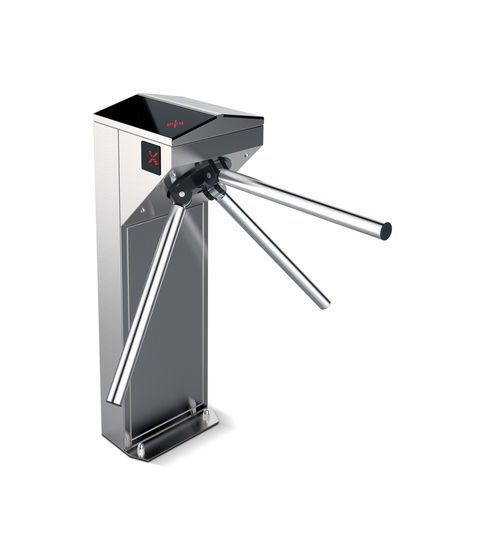

TT 200 * Space-saving turnstile with stainless steel tripod gate for anti-tailgating

!TT 200!
  • Minimum space requirement and maximum efficiency thanks to powerful motor
  • After release, slight pressure on the gate is all that is necessary to gain access
  • Housing design allows for use in external applications, no awning or conversion necessary
  • Bi-directional usage possible, i.e. access and exit can take place in the same lane
  • Control via push button or via an access control system
  • Housing and gate made of brushed or polished stainless steel, powder coating available
Show more
  • The drop arm function enables free passage in case of emergency
  • Rechargeable battery available for power failure
  • Double-sided installation of the TT 200 turnstile possible
  • Passage capacity individual access 25 persons per minute, free access 60 persons per minute
Contact us

The TT 200 turnstile is one of the most popular of the tripod style turnstiles. Taking minimum space and delivering maximum efficiency, the fast responding motor and quick operation will eliminate crowding at the entrance. The drop arm function efficiently enables free passage in case of emergency. A brushed or polished stainless steel finish will suit any interior (powder coated version available). The enclosure design means it is suitable for outdoor installation without an additional canopy or extensive alterations.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Passage width 600 mm
  • For indoor and outdoor use

Technical data

TT 200
Passage width single 600 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41 Standard / IP54 on request
Passage capacity 60 Pers./min.
Anti-tailgating No
Drop-arm function Yes
Standard harmonized EN 17352:2022
