Full height range

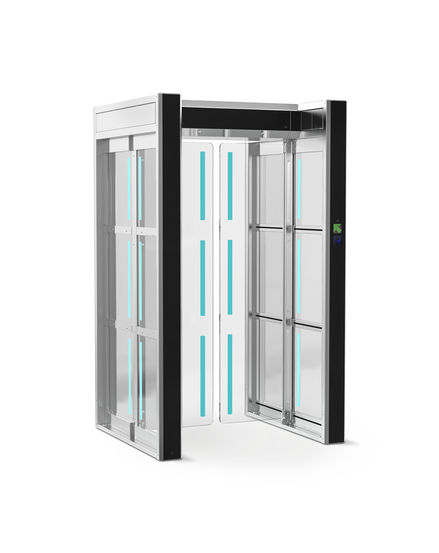

HW G / NG * Security portal with intelligent sensor system for very high security requirements

HW G
  • Full height passage gate that integrates perfectly into the room
  • Fixed panels available in two variants: HW G glass and HW NG metal
  • Safety glass and an intelligent sensor system meet the highest safety requirements
  • Passage detection algorithms constantly monitor the flow of persons
  • After release, the leaf opens automatically and then returns to the closing position
  • In the event of a power failure, the gate can be manually opened (fail-safe)
Show more
  • Bi-directional usage possible, i.e. access and exit can take place in the same lane
  • Control via push button or via an access control system
  • Passage capacity 20 persons per minute
  • BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
Contact us

HW G / NG

The HW G/NG perfectly combine modern aesthetics and functionality. The glass leaves and side panels are made of impact resistant glass providing a feeling of transparency – ideal for the most sophisticated building entrances. The HW G/NG combine different technologies to achieve state of the art performance. Passage detection algorithms constantly monitor the flow of persons through the monitored area until they exit.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Passage width 1000 mm
  • For internal application

Technical data

HW G / NG
Passage width single 1000 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41 Standard / IP54 on request
Opening speed 1.5 s
Closing speed 1.5 s
Passage capacity 20 Pers./min.
Anti-tailgating Yes
Drop-arm function No
Standard harmonized EN 17352:2022

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
