SW range - Speed gates with sweeper system

SW 100 High Glass * Speed gate with high glass leaves for anti-tailgating

SW 100 Slim High Glass
  • Automatic opening and closing of the swing leaves for convenient access
  • Bi-directional usage possible, i.e. access and exit can take place in the same lane
  • Safety sensors ensure that only one person is granted access
  • Prevents objects from being passed through and the speed gate from being jumped over
  • Control via push button or via an access control system
  • Stainless steel housing, solid glass plate top
Show more
  • Rechargeable battery available for power failure / In the event of a power failure, the gate can be manually opened (fail-safe)
  • Passage capacity 25-30 persons per minute
  • BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
Contact us

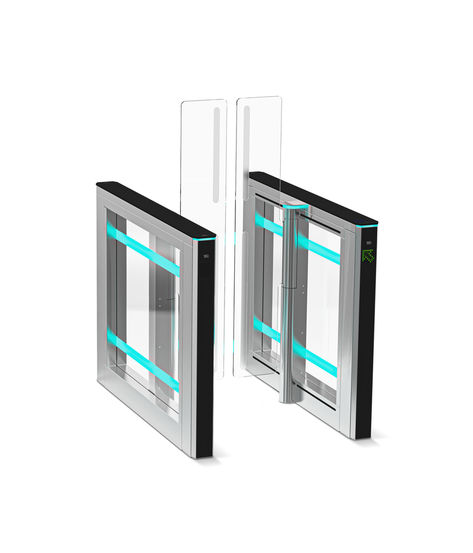

SW 100 High Glass

The SW 100 High Glass is a special version of the SW 100 with tall glass wings. The tall glass wings of the SW 100 High Glass increase security by minimising the risk of people climbing over the barrier. Its special design allows up to a 900 mm wide passage, which can be used for people with special needs. At the same time, both dimensions (the height of the wings and passage width) can be tailored to the customer’s needs.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Can be used for increased security requirements
  • Passage width 550 or 900 mm
  • For internal application

Technical data

SW 100 High Glass
Passage width single 550 mm
Passage width Accessible 900 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41
Opening speed 0.7 s
Closing speed 0.9 s
Passage capacity 30 Pers./min.
Anti-tailgating Yes
Drop-arm function No
Standard harmonized EN 17352:2022

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
