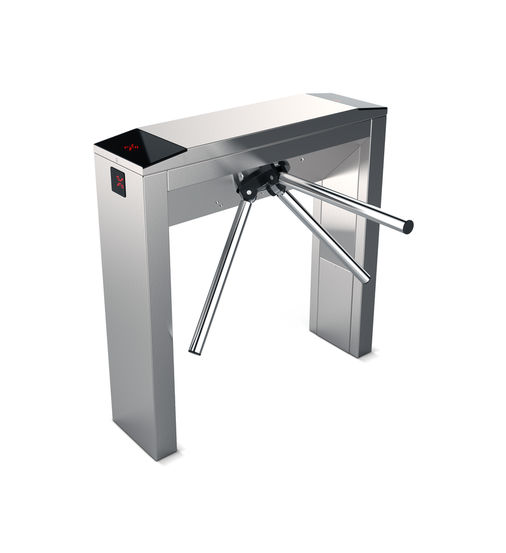

TT 400 * Robust turnstile with stainless steel tripod gate for anti-tailgating
- After release, slight pressure on the gate is all that is necessary to gain access
- Housing available in different versions
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Control via push button or via an access control system
- Gate made of brushed or polished stainless steel, powder coating available
- The drop arm function enables free passage in case of emergency
- Rechargeable battery available for power failure
- Double-sided installation of the TT 400 turnstile possible
- Passage capacity individual access 25 persons per minute, free access 60 persons per minute
The TT 400 turnstile is a robust and reliable model of the tripod turnstile series. This model efficiently controls the entrance even with high foot traffic, making it suitable for heavily used sites like stadiums, industrial plants or factories. The design of the TT 400 turnstile is sleek and elegant. With a choice of housing finishing options, it fits perfectly in both modest interiors as well elegant office buildings. The robust design and high quality materials will ensure reliable operation for years.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- For entrances and exits with high public traffic
- Passage width 600 mm
- For indoor and outdoor use
Technical data
| TT 400 | |
| Passage width single | 600 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 Standard / IP54 on request |
| Passage capacity | 60 Pers./min. |
| Anti-tailgating | No |
| Drop-arm function | Yes |
| Standard harmonized | EN 17352:2022 |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
