Full height range

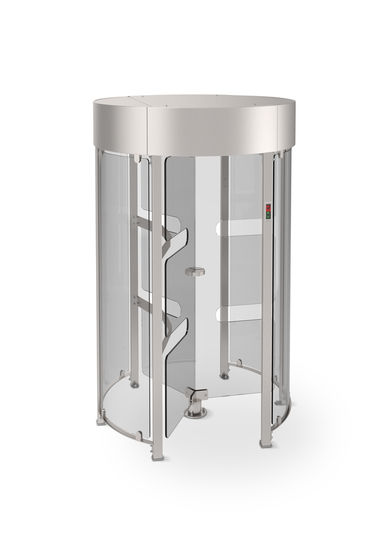

ST 100 Full Height * Safety revolving door with glass turnstile for anti-tailgating

ST 100 Full Height
  • Turnstile can be constructed with continuous or non-continuous glass
  • Stainless steel frame and roof
  • Activation possible with card reader, push button or biometric identification
  • After release, slight pressure on the gate is all that is necessary to gain access
  • Turnstile is bi-directional, access or exit from both directions possible
  • Both directions are closed off in case of a power failure
Show more
  • Control via push button or via an access control system
  • Passage capacity 20 persons per minute
Contact us

ST 100 Full Height

The ST 100 Full Height is an ideal solution for an internal security door. The operating principal is similar to a full height turnstile with the main difference being the glass blades and stainless-steel canopy, which provide a more aesthetically pleasing solution for secure access within a building. The ST 100 Full Height can be controlled by various access control methods including biometrics, card readers or the manual control panel.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Passage width 620 mm
  • For internal application

Technical data

ST 100 Full Height
Passage width single 620 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Hot dip galvanised
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41
Passage capacity 20 Pers./min.
Anti-tailgating No
Drop-arm function No
Standard harmonized EN 17352:2022

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
