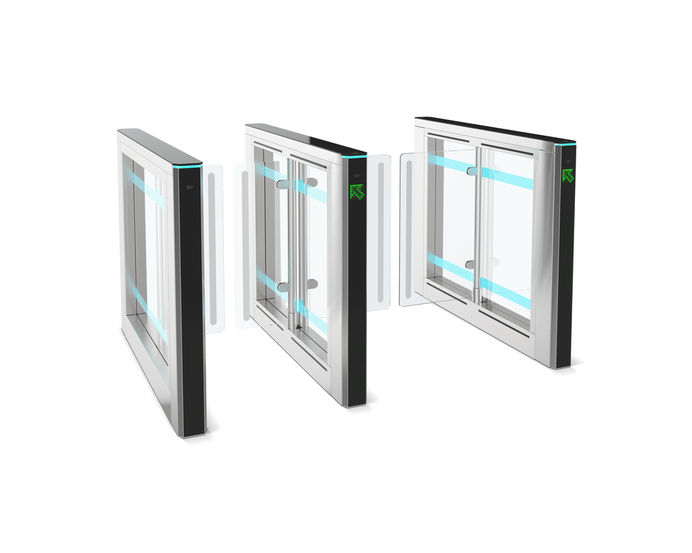

SW 100 Slim * Designer speed gate with swivelling glass leaves for anti-tailgating
- Automatic opening and closing of the swing leaves for convenient access
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Safety sensors ensure that only one person is granted access
- Control via push button or via an access control system
- Narrow stainless steel housing with just a 110 mm width, solid glass plate top
- Rechargeable battery available for power failure / In the event of a power failure, the gate can be manually opened (fail-safe)
- Passage capacity 25-30 persons per minute
- BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
The SW 100 Slim model is the slim version of the stylish SW 100. It combines all the advantages of the popular SW 100 in a new re-designed housing offering a class leading footprint. Each cabinet is only 110 mm wide making the SW 100 Slim suitable for any building. Standard operation uses two modes, normally open and normally closed, along with a wide range of other operational modes when the speed gate is linked to an access control system.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- Passage width 550 or 1000 mm
- For internal application
Technical data
| SW 100 Slim | |
| Passage width single | 550 mm |
| Passage width barrier-free | 1000 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 |
| Opening speed | 0.7 s |
| Closing speed | 1 min |
| Passage capacity | 30 Pers./min. |
| Anti-tailgating | Yes |
| Drop-arm function | No |
| Standard harmonized | EN 17352:2022 |
