TS 3000 EC

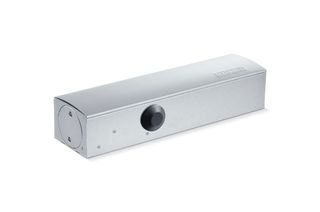

TS 3000 EC * Overhead door closer with guide rail for single leaf doors up to 950 mm leaf width

GEZE TS 3000 V closer Slide rail door closer for single-leaf doors
  • Closing force with variable adjustment from the side
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Closing speed can be individually adjusted
  • Door closer, can be used for right and left hand doors
  • Door closer, can be used for leaf and transom installation
Show more
  • Decreasing opening torque according to BS 8300
Contact us

TS 3000 EC

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 950 mm leaf width
  • Door leaf and transom installation on the hinge and opposite hinge side

Technical data

TS 3000 EC
Closing force in accordance with EN 1154 EN 2 - 3
Leaf width (max.) 950 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side, Transom installation hinge side
Opening angle (max.) 180 °
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Mounting plate with hole pattern in accordance with EN 1154 supplement Yes
Length 226 mm
Width 46 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment At the side
Safety valve againts overload Yes
Thermo-control valves Yes

Downloads

Variants & Accessories

Mounting plate Door closer
Material

Mounting plate door closer

for TS 3000 with hole pattern according to DIN EN 1154 Supplement 1

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
