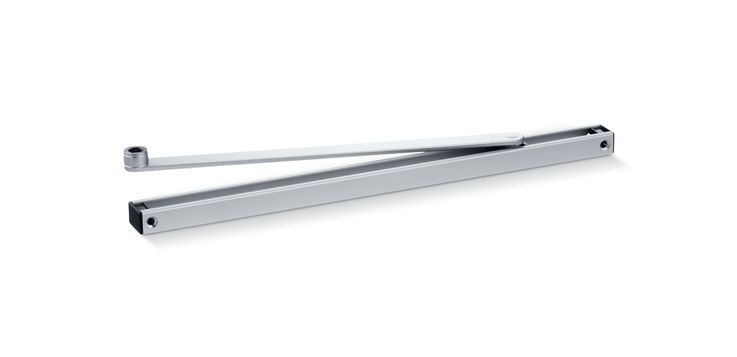

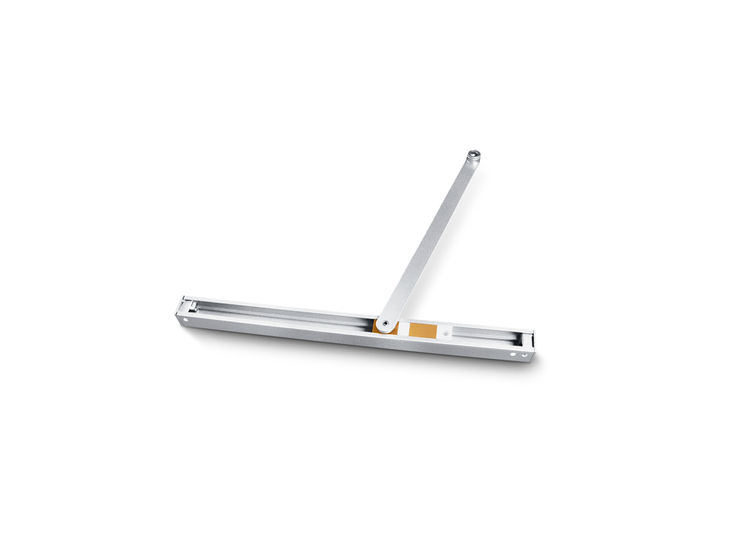

Guide rail 1-leaf

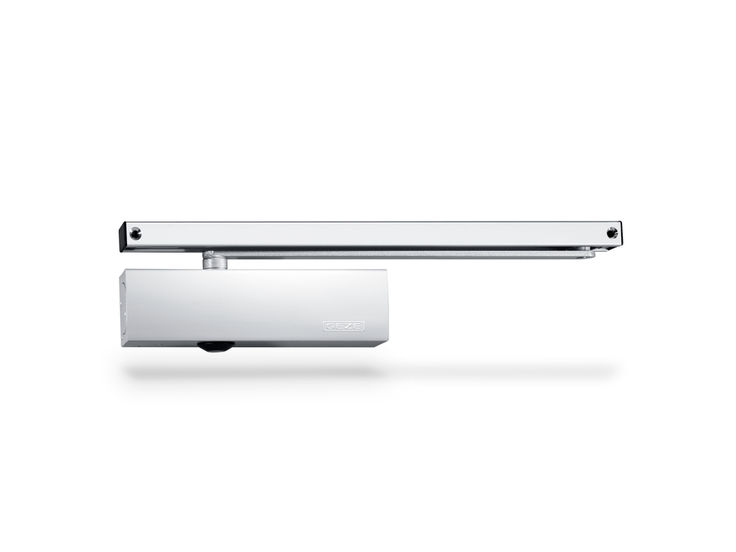

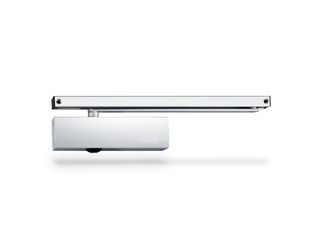

TS 3000 EC * Overhead door closer with guide rail for single leaf doors up to 950 mm leaf width

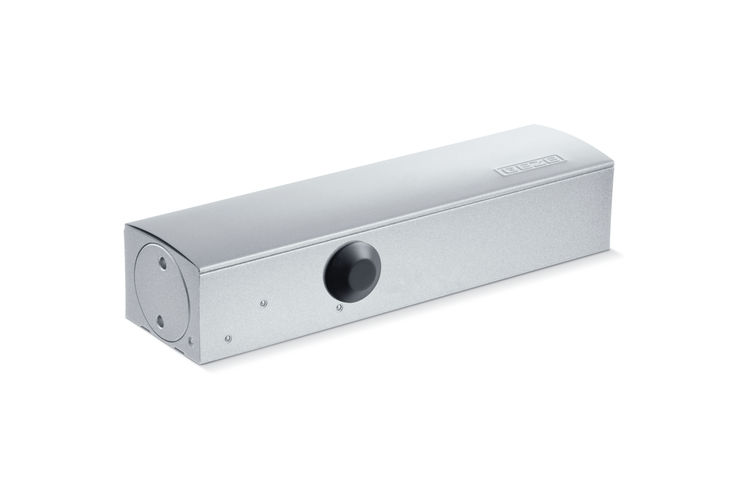

TS 3000 V overhead door closer with guide rail Can be installed on right and left single-action doors/fire and smoke protection doors.
  • Door closer with guide rail and closing force EN2-3 adjustable at the side
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • All functions can be set from the front (except for closing force)
Contact us

TS 3000 EC

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 950 mm leaf width
  • Door leaf and transom installation on the hinge and opposite hinge side

Technical data

TS 3000 EC
Closing force in accordance with EN 1154 EN 2 - 3
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 950 mm
Leaf width (max.) 950 mm

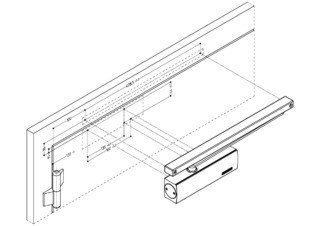

Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Transom installation hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment At the side
Hold-open function Optional

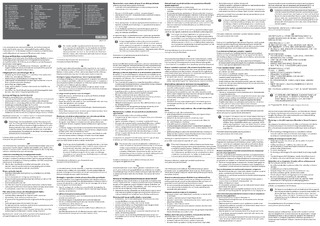

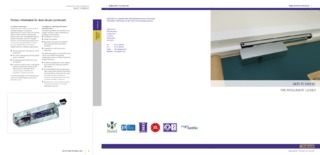

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
