TS 550 NV FP

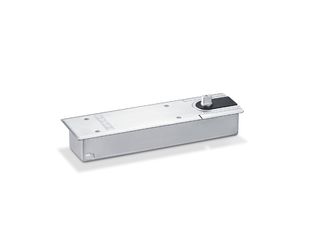

TS 550 NV FP * Basic body for floor-mounted door closer EN 3-6 without hold-open function

Floor springs TS 550 NV F GEZE floor spring TS 500 NV F for fire and smoke protection doors corner bearing all-glass assemblies door leaf, with hydraulic latching action that accelerates the door just before reaching the closed position.
  • Floor-mounted door closer with adjustable closing force of EN3-6
  • Can be used for right and left hand doors without conversion
  • Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
Show more
  • All functions can be adjusted from above and in the installed state
Contact us

TS 550 NV FP

Application Areas

  • Fire and smoke protection doors
  • Right and left double-action doors
  • Double-action doors up to a leaf width of 1400 mm
  • For frequently used and heavy doors up to 300 kg
  • Floor mounting, concealed

Technical data

TS 550 NV FP
Suitability for fire protection doors Yes
Use on single-/double-action door Double-action door
Opening angle (max.) 170 °
Closing force in accordance with EN 1154 EN 3 - 6
Leaf weight (max.) 300 kg
Standard conformity EN 1154:1996/A1:2002/AC:2006
Length 342 mm
Width 82 mm
Height 54 mm
Length adjustment range for cement box 9 cm
Width adjustment range for cement box 10 cm
Height adjustment range for cement box 6 cm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Mechanically fixed
Delayed closing integrated Yes
Position of closing force adjustment Top
Safety valve againts overload Yes
Thermo-control valves Yes
Closing effect from 170 °

Downloads

Variants & Accessories

GEZE floor spring cover plates
Accessories

Floor spring cover plate

For TS 550 NV / TS 550 NV F

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
